Wear Resistant Ceramic Liner
1: Various of shapes for choice
2: Standard and customized sizes available
3: Widely applied for vulcanization

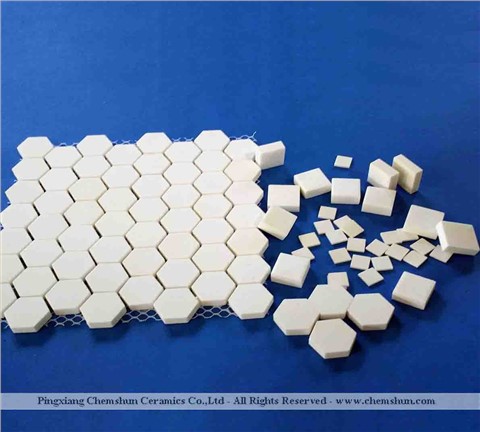

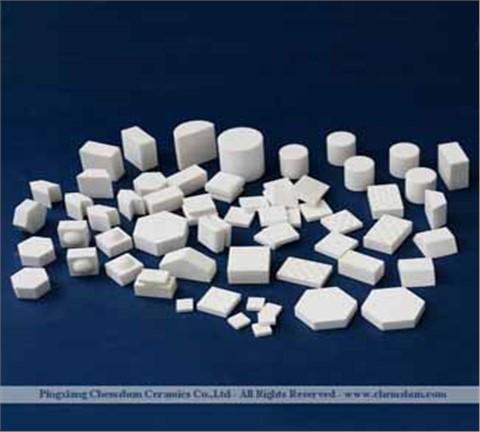

1: Chemshun wear resistant ceramics.

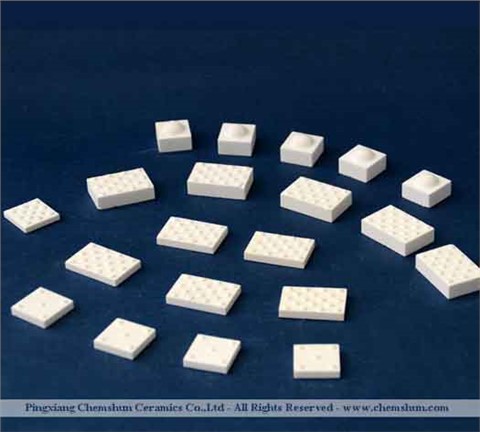

- hexagonal ,square, rectangle tile with dimples

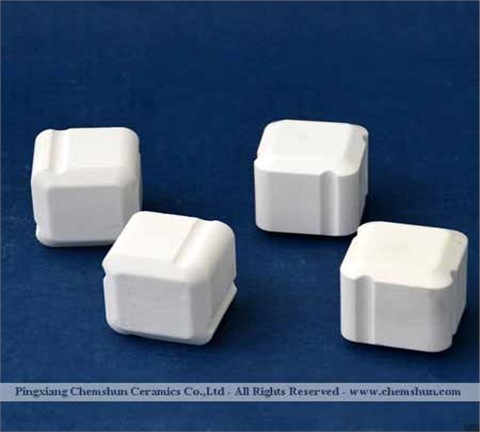

- ceramic block with interlock

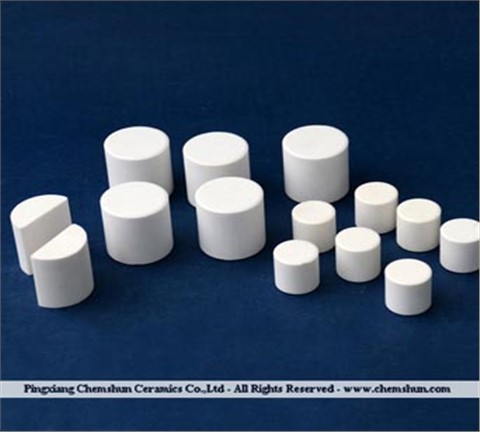

- ceramic cylinder
- irregular customized ceramics

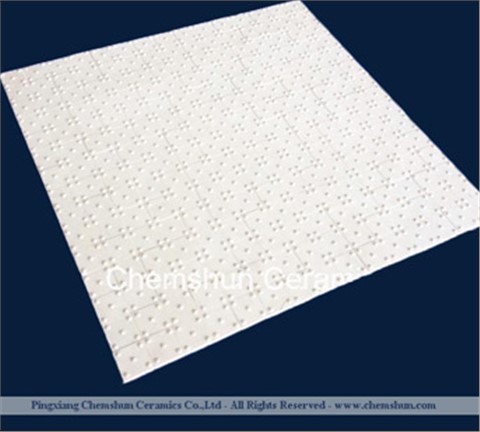

- ceramic tile mats
2: Wear resistant ceramics sizes and property:
Properties | Unit | CHEMSHUN 92 | CHEMSHUN 95 |
Al2O3 | ％ | 92 | 95 |
Density | g/cm3 | 3.6 | 3.65 |
Moh’s Hardness | Grade | 9 | 9 |
Products | Size in mm (L*W*T) or (S*T) | ||
Ceramic square tile | 10*10*2~10, 17.5*17.5*2~15, 20*20*2~20, 33*33*5~25 etc | ||
Hexagonal Tile | 6*3~6, 11*3~25, 12*3~25,19.05*3~25 | ||
Ceramic block | 32*32*32, 40*40*40 | ||
Hex/square tile mats | 150*150, 300*300, 500*500 | ||
Material of mats | Paper, nylon mesh, acetate cloth etc. | ||

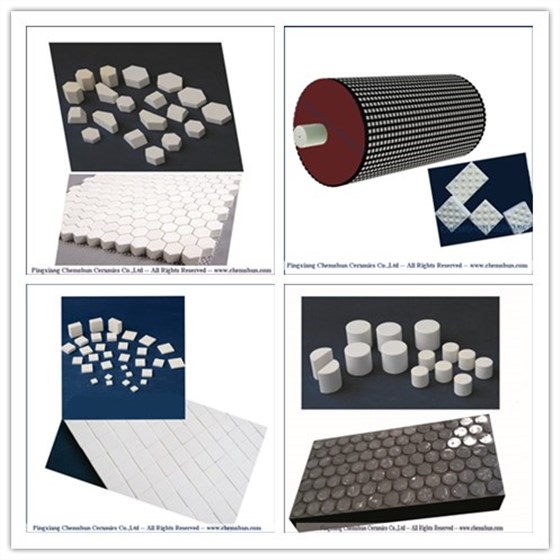

3: Application
4: Package way :
-- carton box first , then fixed on the pallent with six nylon belts.
5: Export ports :
-- Shanghai, Guangzhou, Shenzhen, Tianjing, Qingdao all available .
6: Delivery time :
-- Standard sizes ceramics within 25 days if 20 ft container,
-- Custom ceramic according to actual situation .
Product Technical Data（1：wear resistant ceramic)
