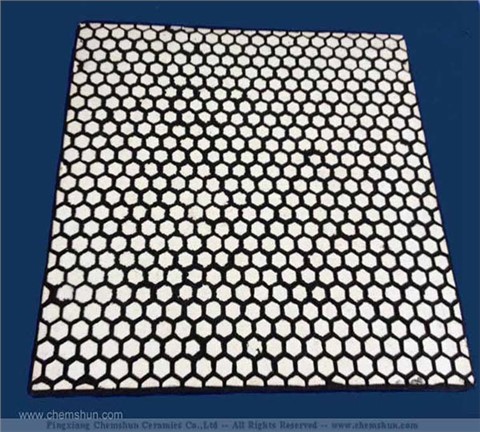

Hex Rubber Ceramic Wear Plate

Hex Rubber Ceramic Wear Plate

Alumina Ceramic rubber composite liner with excellent impact resistance, abrasion resistance.

Ceramic rubber composite liner Features:

> High wear and abrasion resistance.

> Long wear life, low maintenance and downtime.

> Significant noise reduction

> Corrosion resistant

Product description:

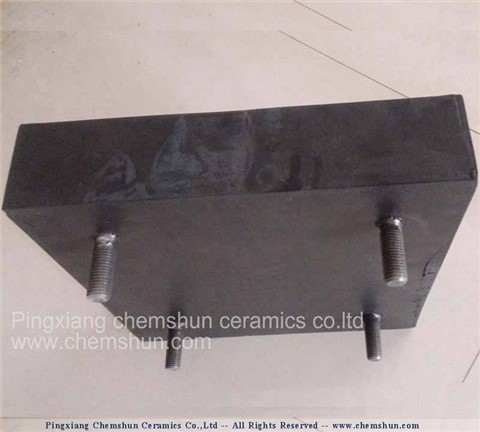

Hex rubber ceramic wear plate ( Rubber Ceramic Panels ) is made by a combination of wear resistant alumina ceramics (cylinders,hexagon, plates) vulcanized in resistant rubber base, some rubber plates can selectively with steel backing.

The alumina ceramic liner provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics. Rubber also helps to substantially reduce the vibrations, sounds, and the impact shock generated from impacting rocks.

As excellent impact and wear resistant material,The Rubber ceramic liners is suitable for feeders, chutes, bins, transfer points, in conveyor systems, screen feed plates, mill discharge chutes, bunker etc. The major applicable industries are Coal fired power plants, cement plants, blast furnace plants and host of other industries which requires high impact abrasion resistant surfaces.

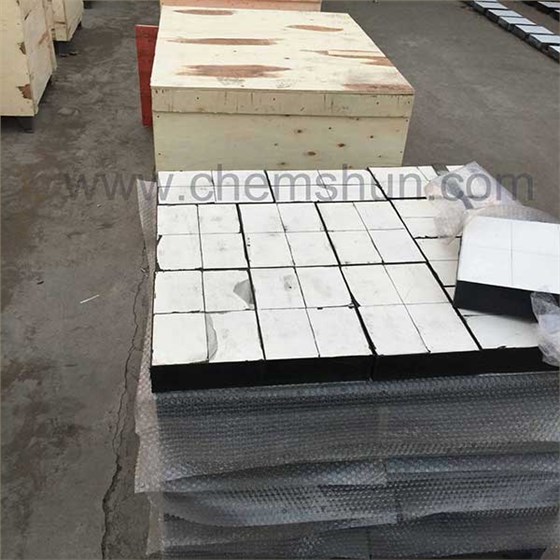

rubber ceramic linings package

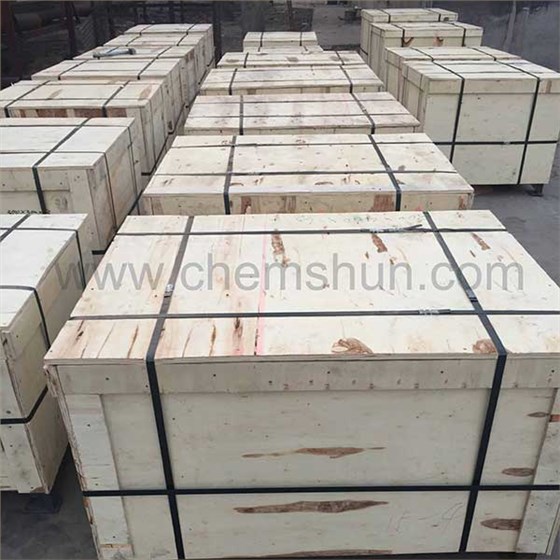

ceramic rubber liner package

Applications of rubber ceramic chute ceramic liner:

>conveyor chutes

>reflectors and impact plate

>bins, hoppers

>conveyor skirt liners

>stackers and reclaimers

Chemshun Standard Size :

Size Sheet
60060030 mm
60060037 mm	25025030 mm
30030063 mm	25025037 mm
50050025 mm	20020025 mm
50050037 mm
45030063 mm
50050063 mm

Ceramic shape vulcanized on the rubber :

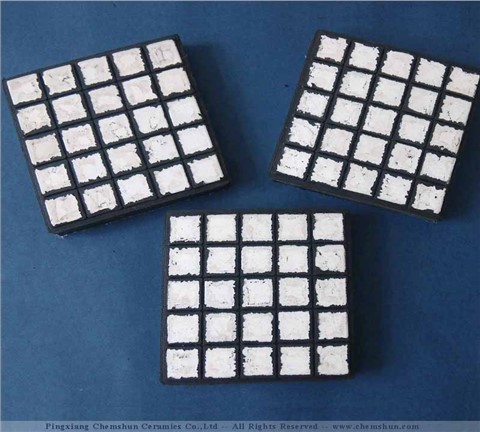

Ceramic hex.tile, ceramic square tile, ceramic bricks are available from 10x 10 mm to 100 x 150 mm; thickness from 2 mm to 50 mm.

Chemshun popular wear ceramic rubber panel including: Panel With Dimple Ceramic; Panel With Hex. Ceramic; Panel With Cylinder Ceramic.

Product Structure

-- metal+rubber+ceramic

-- rubber+ceramic

-- Ceramics + Metal sheet

The property of vulcanized ceramics

Property	Value
Normal Size	500500mm , 300300mm,250*250mm
Ceramic Thickness	15~50mm
Rubber Thickness	3mm~10mm
Type of Rubber	Vulcanized natural rubber compound with carbon black filler (approx. 40%)
Rubber Shore A hardness	45 (+/-5)
Rubber Tensile Strength	2710 psi
Rubber Elongation	600%
Rubber-ceramic bond	Surface chemical pre-treatment of ceramic prior to hot pressure vulcanized
Ceramic tile (Thk)	2mm~50mm (mosaic tiles, plain tile etc.)
Vulcanized ceramics	square mosaic tile, rectange tile , plain tile , hex tile , cylinder
Alumina Content	Al.₂O₃92% 95%
