Product details

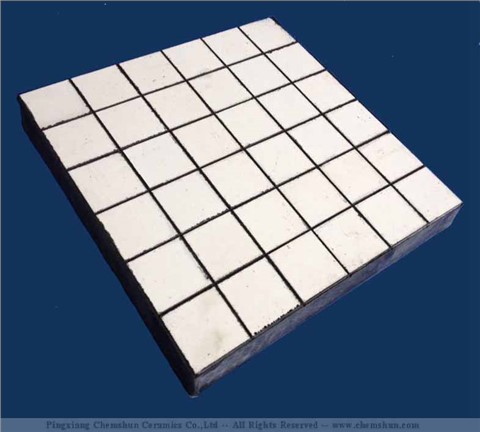

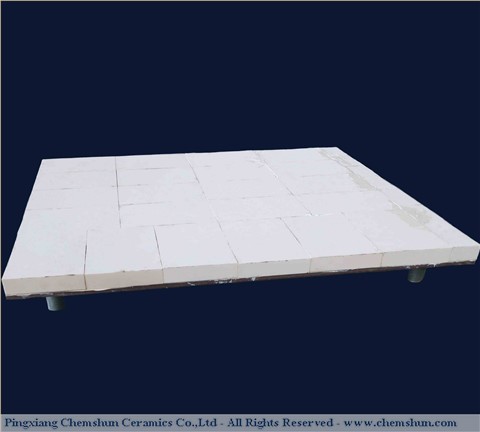

Rubber Ceramic Wear Liner

The rubber ceramic wear liner is with a high wear resistant ceramics alumina tile vulcanized within resilent rubber, The ceramics provide excellent resistance to wear, while the elasticity of rubber effectiely dampens impact forces, This combination well solved the problem of the wear and impact areas .

1: Rubber Wear Ceramic Liner Application :

Industry	Applied Equipment
Mining	Discharge Chute, Transfer Chute, Reflectors And Impact Plate, Bunker&BinConveyor Skirt Liners, Stacker And Reclaimers, SiloBelt Stock House,Coal Feeder, Coal hopper,
Coal fired power plant
Port Industry
Steel industry
Cement plant

2: Chemshun Rubber Ceramic Wear Liner suggestion according to your wear area:

Rubber Ceramic Wear Liner Suggested :

Ceramic Tile Suggested :

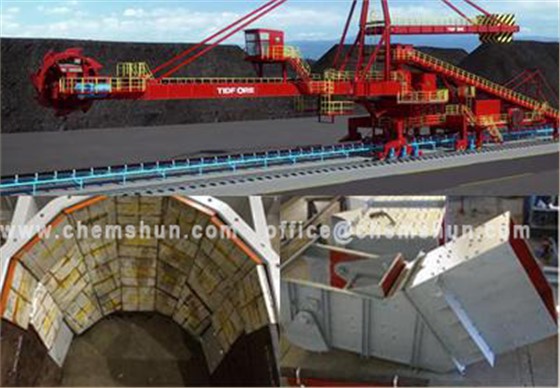

1chemshun ceramic wear liner application.jpg

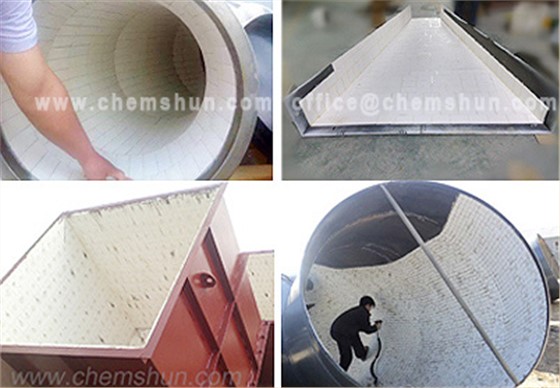

chemshun ceramics tile liner application.jpg

Wear Area Character: Condition of

extremely impactand abrasion,Typical

materials handled like gypsum,lime,gravel,

coal,ores,especially size more than 40mm,

Machines like chute,hopper,bunker,stacker

& reclaimer.

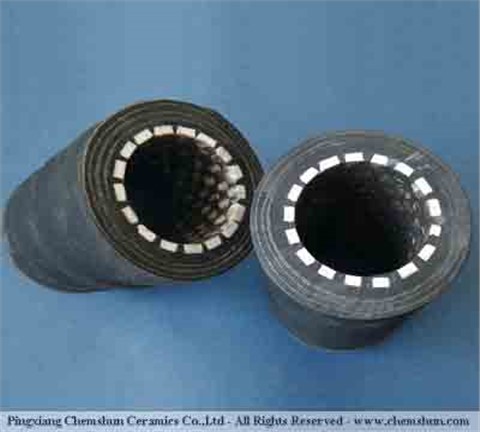

Wear Area Character: Condition of air

and wind powder conveying system,typical

materials like ash,sand,cement, dust.

machines likepipeline,hopper,chute,cyclone

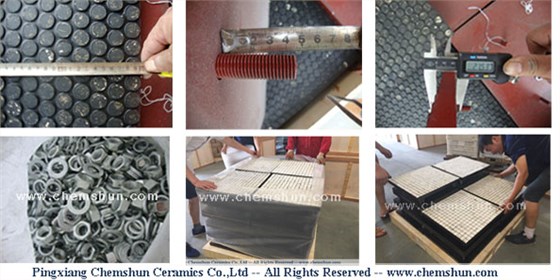

3: Chemshun Rubber Ceramic wear liner package & test & parts

4: Rubber ceramic plate features:

> High wear and abrasion resistance.

> Long wear life, low maintenance and downtime.

> Significant noise reduction

> Available in a wide variety of shapes and sizes

> Corrosion resistant

5: Chemshun Rubber Ceramic plate Sizes

Property	Value
AluminaContent	Al₂O₃92%	Al₂O₃95%

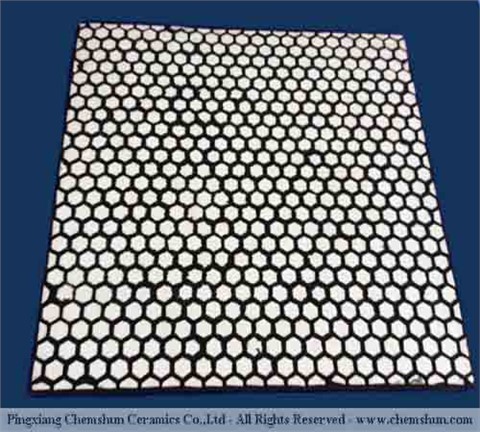

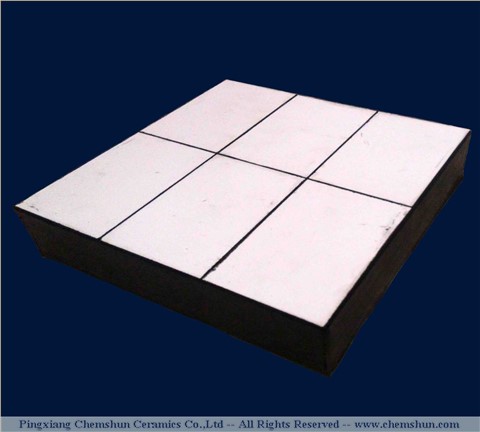

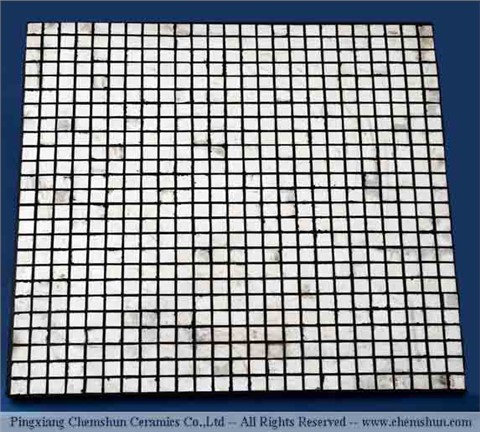

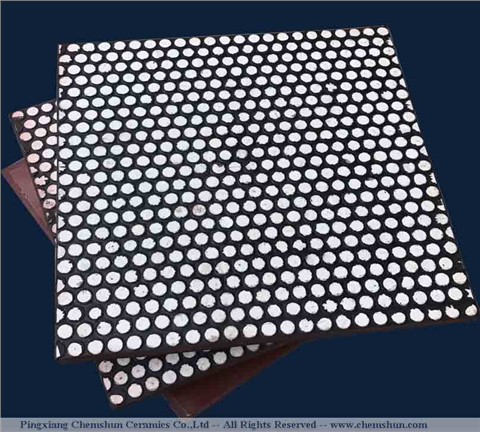

CeramicsVulcanized	Square Mosaic Tile, Rectangle Tile , Plain Tile , Hexagonal Tile , Alumina Cylinder
Ceramic Thickness	15mm ~ 50mm
Rubber Thickness	3mm ~10mm
Steel Thickness	3mm ~ 10mm
NormalSize	150300 , 200200, 300300, 500500, 450300, 530450

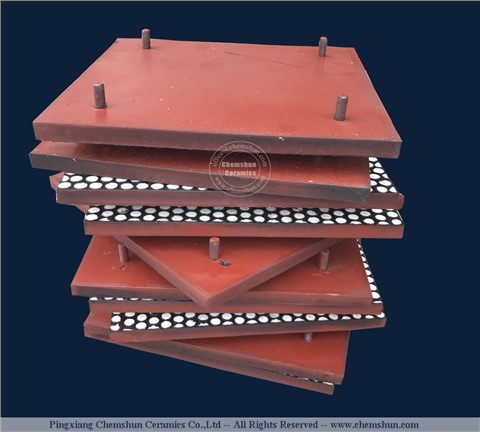

Sheet Structure	Ceramic Steel ,Ceramic Rubber, Ceramic Rubber Steel
