Rubber backed ceramic tile liner

Rubber Backed Alumina Ceramic Tiles

Rubber backed alumina ceramic tiles are perfect combination of hardness and flexibility.

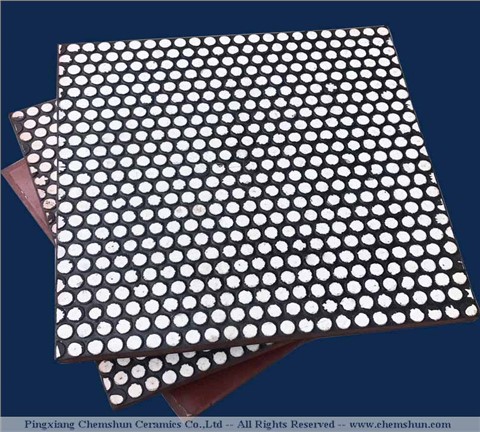

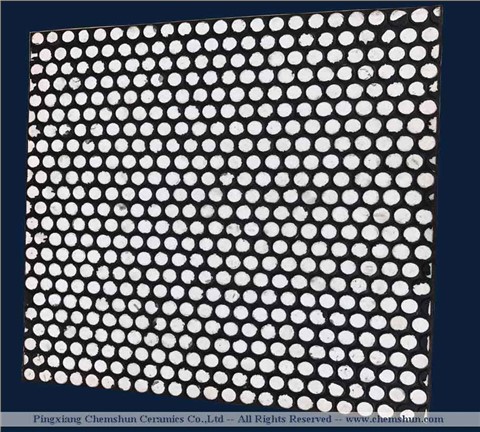

Rubber backed ceramic tiles are perfect combination of hardness and flexibility. Chemshun ceramic cylinders are vulcanized into the rubber backing with appr.45 Shore A hardness, offering high impact and noise reduction beside of excellent abrasion resistance. Chemshun rubber components panels are engineered and designed to the needs of our customers.Our standard sizes includes mats 500x500 mm, 300*300mm, 150*150mm consisting cylinder 31*31mm,hexagonal alumina tile,square mosaic tile,plain tile. ZTA ceramic backed rubber sheet also can be supplied.

1: Rubber backed ceramic tiles Application :

Industry	Applied Equipment
Mining	Discharge Chute , Transfer Chute , Reflectors And Impact Plate, Bunker&BinConveyor Skirt Liners, Stacker And Reclaimers, SiloBelt Stock House,Coal Feeder, Coal hopper,
Coal fired power plant
Port Industry
Steel industry
Cement plant

2: Chemshun Ceramic Liner suggestion according to your wear area:

Rubber Ceramic Wear Liner Suggested :

Ceramic Tile Suggested :

1chemshun ceramic wear liner application.jpg

chemshun ceramics tile liner application.jpg

Wear Area Character : Condition of

extremely impactand abrasion,Typical

materials handled like gypsum,lime,gravel,

coal,ores,especially size more than 40mm,

Machines like chute,hopper,bunker,stacker

& reclaimer.

Wear Area Character : Condition of air

and wind powder conveying system,typical

materials like ash,sand,cement, dust.

machines likepipeline,hopper,chute,cyclone

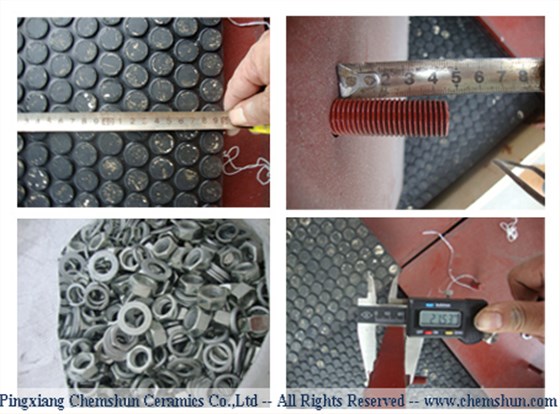

3: Chemshun rubber backed ceramic tile (500*500*20mm )

4: Rubber ceramic plate features:

> High wear and abrasion resistance.

> Long wear life, low maintenance and downtime.

> Significant noise reduction

> Available in a wide variety of shapes and sizes

> Corrosion resistant

5: Chemshun Rubber Ceramic plate Sizes

Property	Value
Alumina Content	Al.₂O₃92%	Al₂O₃95%

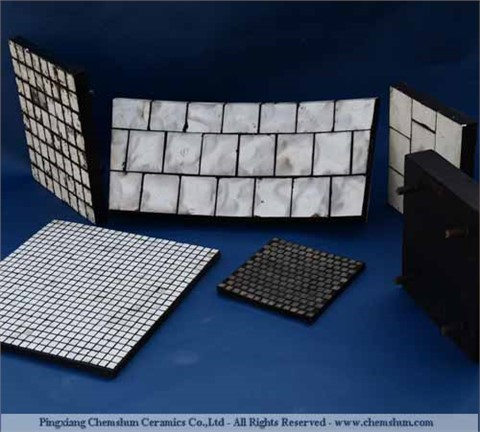

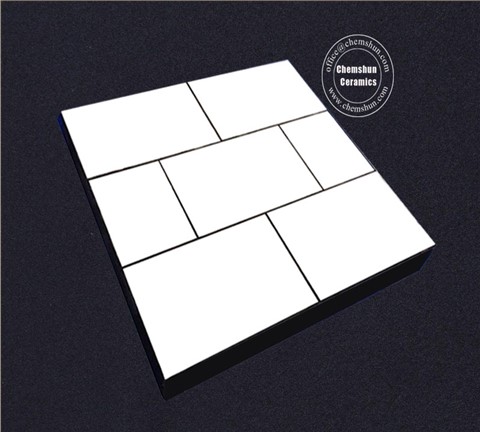

Ceramics Vulcanized	SquareMosaicTile, Rectangle Tile ,Plain Tile , Hexagonal Tile ,Alumina Cylinder
Ceramic Thickness	15mm ~ 50mm
Rubber Thickness	3mm ~10mm
Steel Thickness	3mm ~ 10mm
Normal Size	150300 , 200200, 300300, 500500, 450300, 530450,

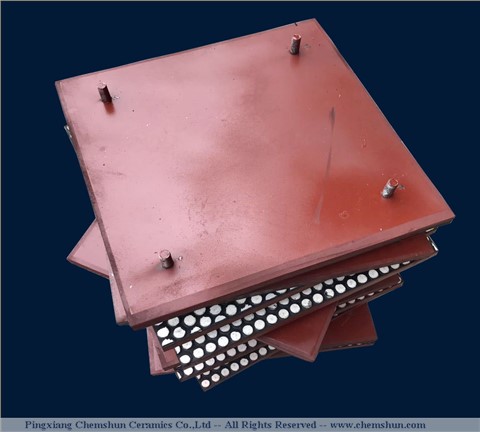

Sheet Structure	Ceramic Steel ,Ceramic Rubber, Ceramic Rubber Steel
