Alumina ceamic lining with salient point

Ceramic Lining With Salient Point

Alumina Ceramic Tile has high impact resistance with Hemispherical surface design.

Chemshun Introduction:

We pingxiang chemshun ceramics Co., Ltd are a professional manufacturer and exporter of wear resistance ceramic product. Our product including the alumina plain tiles, ceramic pulley laggings, alumina weldable plate, alumina mosaic pieces, alumina square tiles, alumina cylinders and alumina pipes. The mentioned product output is over than 25000ton/year. We have advanced facility and strictly quality contral system. The product sells popular in the world market.

Product description：

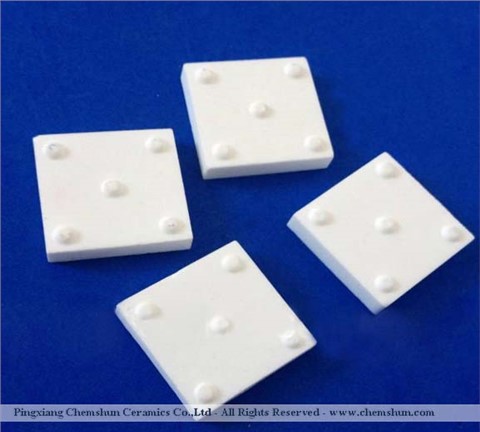

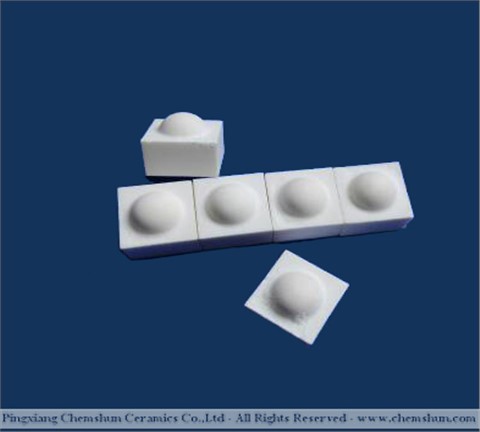

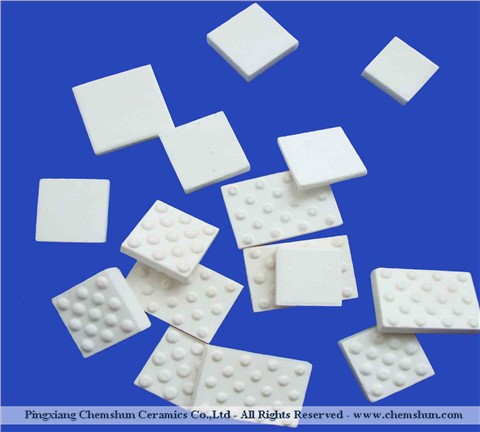

Alumina ceramic lining with salient point is an alumina (AL2O3)-oriented material with other ingredients and is sintered through 1700°C of high temperature. The salient points on the surface of conveyor WearLiningcan improve friction, so it's widely applied in conveyor system to avoid wear, prolong the service life of rubber conveyor belt and save shutdown time.

Features：

1.Higher wear-resistance

2.Higher corrosion resistant

3.Higher hardness higher density

4.Higher friction than normal alumina ceramic tile can avoid materials slip or fall.

4.Free-contamination

5.Prolong the equipment service life

Application:

Ceramic lining tilewith salient point is usually asvulcanized ceramic pulley lagging or othersvulcanized ceramic equipments. It's applied in used in thermal power, iron and steel, metallurgy, mechanical, coal, mine, chemical, cement, port and wharf, etc.

Suitable for all large mechanical equipment with severe abrasions including conveying coal and material system, coal pulverizing system, dust removal system and dust pelletizing system, etc.

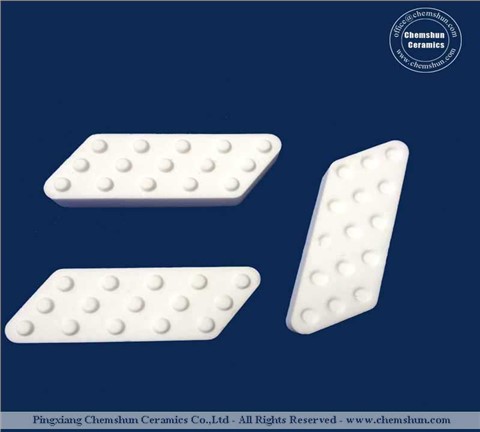

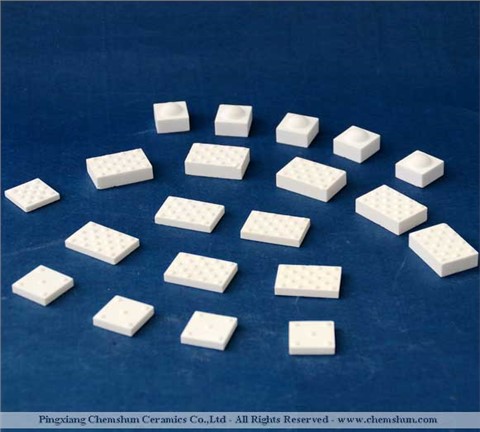

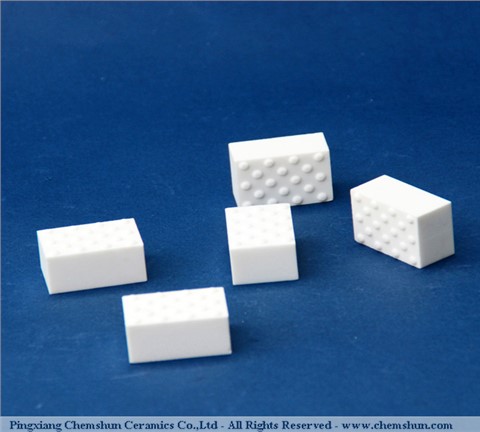

It can select different shapes according to different requirements: Hex tile, Square tile, Arrowed tile and others your need.

Physical Analysis :

Performance Index	92series	95series
Al2O3(%)	≥92	≥95
Moh's Hardness	9	9
Water Absorption Rate(%)	<0.01	<0.01
Flexural strength,20C,Mpa	275	290
Bending strengh(Mpa)	255	275
Bulk density(g/cm3)	≥ 3.60	≥ 3.65
