Alumina Grinding Media for Cement Mill

Alumina Grinding Media for Cement Mill

With the advantages of high density , low cost , excellent abrasion properties . ChemshunCement Mill Grinding Ball becomes an ideal ball mill media instead of traditional high chromium steel balls for cement mill.

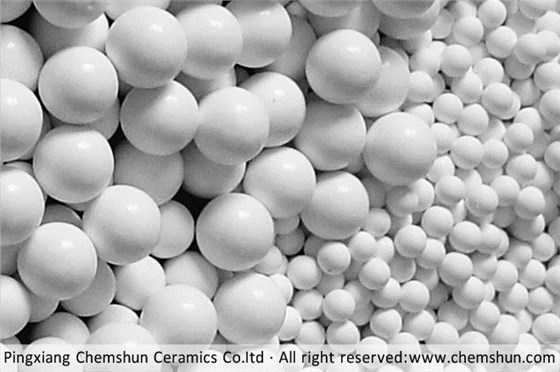

Alumina balls for cement milling.jpg

Six Advantages of Alumina Grinding Media Instead of High Chromium Steel Ball For Cement Mill Application:

1) Save Power

-- Reducing the mill loading 20%

-- Saving power above 15% per ton cement

2) Improve quality

-- Improve the grinding efficiency

-- Improve the performance of cement

-- Rationalize the grains distribution more better

-- Increase 2% of the grain 3-32 μm

-- Improve the spheroidization efficiency

-- Decrease 1~2% water in same standard consistency

-- Adapt the concrete admixture for cement well

3) Reduce Current

-- The current of mill mainframe is reduced by more than 20%

4) Cooling and noise reduction

-- The temperature could be down more about 20℃

-- Good effect of noise reduction

5) Excellent abrasion

-- The abrasion loss of chemshun alumina grinding media for cement mill is about a half of steel ball

6) Protect environment

-- Using of chemshun alumina grinding ball could protect environment effectively

Physical properties comparision with chromium steel balls

Materials	Density	Bulk weight	Moh’s Hardness	Crushing Rate	Abrasion Loss
Materials	g/cm³	Kg/cm³	Grade	%	g/ Kg.h
High chromium steel ball	7.6-7.8	4500	6.8	<1-3	0.18
Chemshun alumina Ball	3.6-3.8	2200-2300	9.0	<1-3	0.09

Properties of Alumina ceramic cement mill ball :

Properties	Unit	CHEMSHUN 92	CHEMSHUN 95
Al₂O₃	%	>92	>95
SiO₂	%	<5	<4
Cao+MgO	%	<2	<2
Density	g/cm³	>3.60	>3.70
Bulk weight	kg/cm³	2200	2300
Moh's hardness	Grade	9	9
Rockwell hardness	HRA	83-85	85-87
Water absorption	%	0	0

Size - Molding by cold isostatic pressing :

Diameter (mm)	Ф80	Ф70	Ф60	Ф50	Ф40	Ф30	Ф25
Range	80±3	70±3	63±2	52±2	40±2	32±1.5	26±1.5

Size - Molding by rolling :

Diameter (mm)	Ф20	Ф17	Ф15	Ф13
Range	20 ± 1	17±1	15±1	13±1

Alumina Ceramic Grinding Media data

Service:

Any requirment about chemshun AluminaCeramic Grinding Ball for cement, Alumina beads/Zirconia beads for mining industry, Alumina Ceramic Square Mosaic Tile, Alumina Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781

Export:

Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
