Product details

Wear Resistant Ceramic Rubber Hose

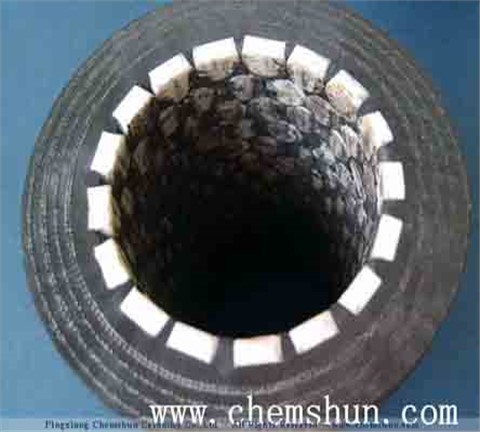

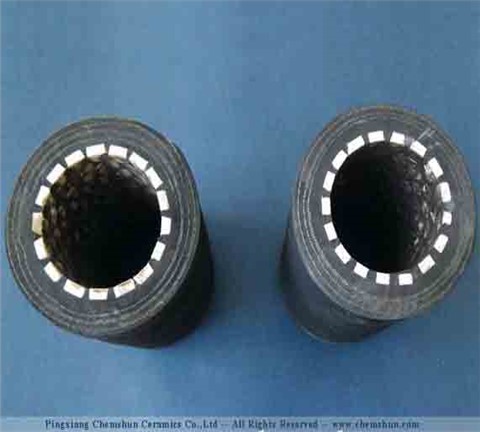

The flexible hose is lined with ceramic cylinder for wear resistance,Another advantage is for flexibility , which may curve in any direction.

In the newly developed wear resistant ceramic rubber hose, ceramic cyclinder are used to eliminate the disadvantage in the conventional ceramic ball hoses

In the newly developed wear resistant ceramic rubber hose, ceramic cyclinder are used to eliminate the disadvantage in the conventional ceramic ball hoses, It has higher abrasion resistannce while maintaining flexibility compared to conventional ceramic balls hoses,The standard ceramic hose is limited to 20 meters in length and 25 to 400mm in hose inner bore.

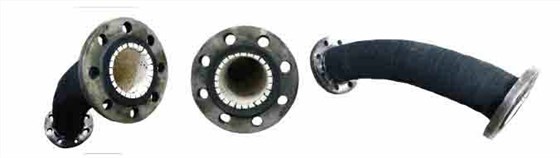

Elbow type ceramic hose available

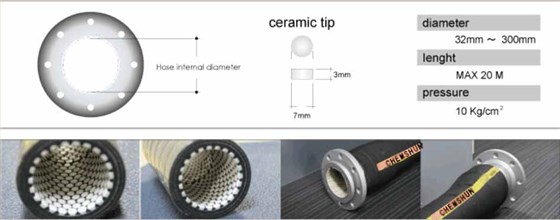

We can produce hose according to customer's requirement,Our new ceramic hose has the circular disk shaped ceramic tipe compared with the conventional ball shaped ceramic tip and shows several times higher abrasion resistance

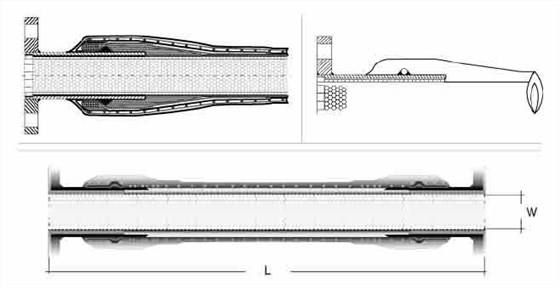

In the newly developed wear resistant ceramic rubber hose, ceramic cyclinder are used to eliminate the disadvantage in the conventional ceramic ball hoses

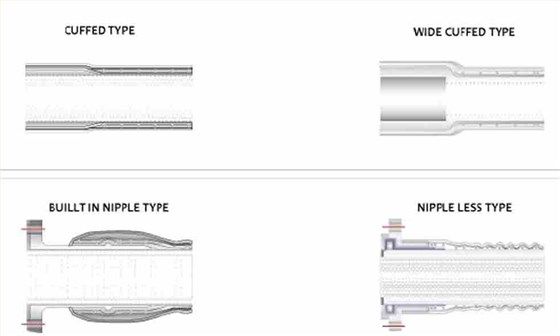

End shapes of wear resistant ceramic hose

In the newly developed wear resistant ceramic rubber hose, ceramic cyclinder are used to eliminate the disadvantage in the conventional ceramic ball hoses

Ceramic Rubber Hose

Size provided by Chemshun :

Diameter	Diameter Internal	Diameter external	Resistance to bending	Length	Pressure
1”	25	42	300	10	10 Kg/cm²
1-1/4”	32	50	380	10	10 Kg/cm²
1-1/2”	38	56	480	20	10 Kg/cm²
2”	50	72	600	20	10 Kg/cm²
2-1/2”	65	94	780	20	10 Kg/cm²
3”	75	105	900	20	10 Kg/cm²
3-1/2”	90	120	1060	20	10 Kg/cm²
4”	100	140	1200	20	10 Kg/cm²
5”	125	160	1500	20	10 Kg/cm²
6”	150	190	1800	20	10 Kg/cm²
8”	200	235	2400	10	10 Kg/cm²
10”	250	290	3000	10	10 Kg/cm²
12”	300	350	3600	10	10 Kg/cm²
