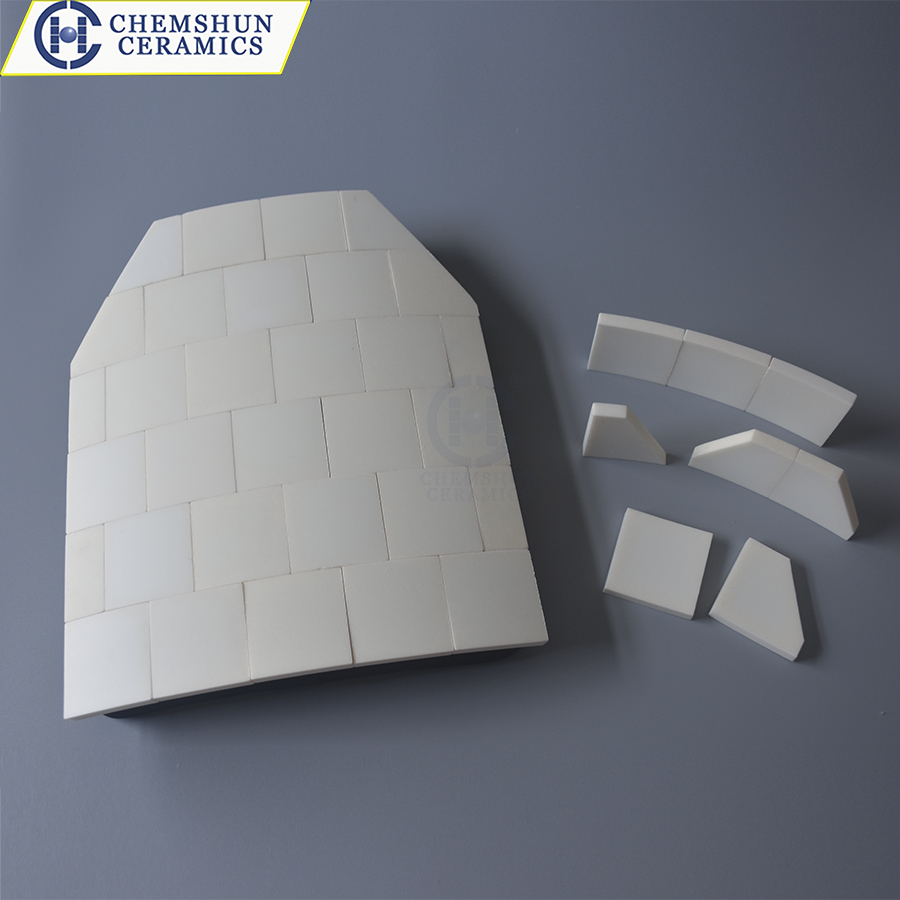

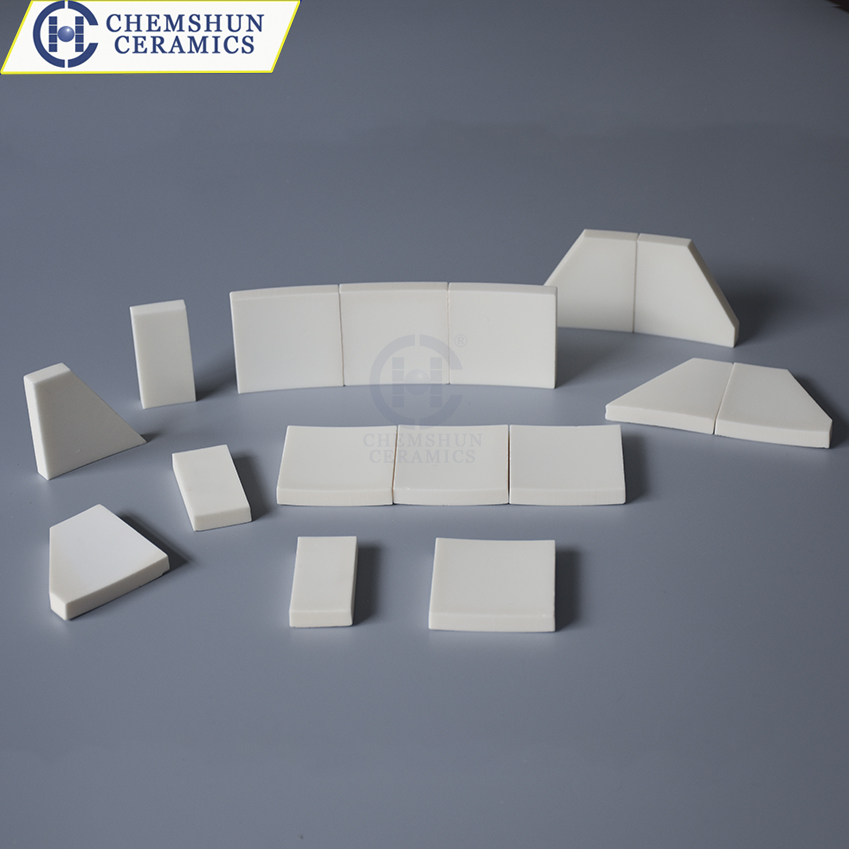

99% alumina bulletproof ceramic is a high-performance protective material widely used in personal bulletproof equipment, vehicle armor, and aviation protection systems due to its exceptional hardness and energy dispersion capabilities. Classified under the standard alumina ceramic series (with Al2O3 content ranging from 98% to 99.7%), this material is an ideal choice for ballistic protection because of its high melting point, high hardness, and excellent mechanical properties.

Material Properties and Ballistic Mechanism: 99% alumina ceramic boasts high hardness (Mohs hardness 9) and density (≥3.9 g/cm³), enabling it to effectively blunt or destroy incoming projectiles. Upon projectile impact, the ceramic fractures and comminutes, absorbing the projectile's kinetic energy and dispersing the impact force over a larger area. Research indicates that higher purity alumina ceramics (99.5%) exhibit superior ballistic performance, with a higher ballistic efficiency factor compared to 95% alumina ceramics. For instance, Hangshi Ceramics has developed an 8mm thick alumina ceramic bulletproof plate that can withstand 7.62mm projectile impact, weighing 50% less than traditional steel plates and meeting the Level 2 requirements of GA141-2010 standard.

Manufacturing Process and Applications: 99% alumina ceramics are manufactured using dry pressing and high-temperature sintering processes. Jiyuan Brother Materials employs fully automatic bidirectional pressing and automated kiln sintering to ensure high density, precise dimensions, and consistent ballistic performance of their products. In ballistic applications, the ceramics are typically combined with composite backing plates, commonly seen in bulletproof inserts. Beyond military protection, 99% alumina ceramics are also used in high-temperature crucibles, refractory furnace tubes, ceramic bearings, seals, and as integrated circuit substrates and high-frequency insulating materials in the electronics industry.
